Configuration Procedure
[ Contents ] [ Avaya website ]

Once you have a valid IP Address assigned to your AP-3 and an Ethernet connection, use your web browser to configure the AP-3 through the HTTP Interface.

The following procedure explains how to configure each item.

  1. Open your browser and enter the IP Address
  2. Press ENTER. Result: The AP-3 Login screen appears.

Figure: Login Screen

Leave the User Name field empty
  1. Enter "public" in the Password field. Result: The System Status screen appears.

Figure: System Status Screen

  1. Click the Configure operation button. Result: The System Configuration screen appears. Each tab contains information for specific configuration categories.

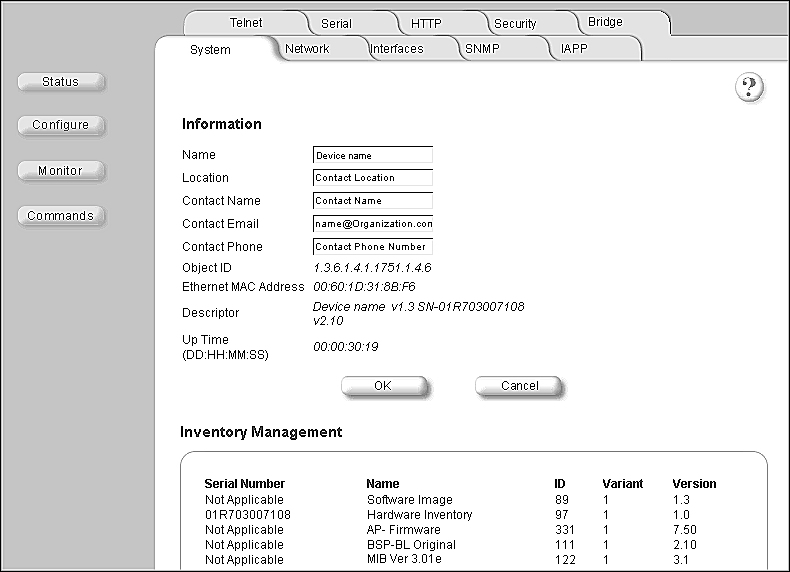

Figure: Configuration Screen

  1. You are now ready to configure each AP-3 category, depending on your system. In some cases, you will not need to make any changes. If you are in doubt about any setting, we recommend that you use the default values. The following section covers configuration options for each tab in order, beginning with the System tab.
When setting most configuration values, confirmation screens tell you if the information has been successfully modified.

AP-3 Configuration Tabs (categories)

The configuration options of your AP-3 can be divided into two major categories:

  • that cover the options that will apply to most users.
  • Advanced Configuration Tabs that you may wish to explore to customize your AP-3 device once it is up and running.

This chapter will describe the Basic tabs. For information about the Advanced tabs, please consult Advanced Features.

Table: Basic Configuration Tabs

System Configuration Tab

General system information and inventory management.

Network Configuration Tab

IP and DHCP Server configuration settings and Link Integrity information.

Interfaces Configuration Tab

Set up the Network Name and PC Card properties for each PC Card and the Ethernet configuration.

Serial Configuration Tab

Set up communication port parameters for the RS-232 compatible interface.

HTTP Configuration Tab

Set up the HTTP Interface and assign a password.

Security Configuration Tab

Set MAC Address control, RADIUS Server, and Encryption properties.

Table: Advanced Configuration Tabs

SNMP Configuration Tab

Set up SNMP parameters, including Trap Host IP and IP Access Table

IAPP Configuration Tab

Set up the Inter-Access Point Protocol (IAPP) so multiple AP-3 devices can accommodate client roaming.

Telnet Configuration Tab

Set up the Telnet Interface to be used with most generic Telnet clients.

Bridge Configuration Tab

Set Protocol and Address filters. Setup Spanning Tree properties.

Setting configuration properties

To set properties for each category, click on the desired tab. Result: The selected configuration screen appears. Each configuration screen allows you to select options, or enter, edit, and delete information.

In some cases, the AP-3 reminds you that it must be rebooted for a change to take effect. In a given session, you can wait to reboot until all changes have been made.

After entering or editing information on configuration screens, click OK to save changes, or click Cancel to restore previous settings.

To see the latest information, "Refresh" your browser after making changes. For example, after modifying IP Pool Tables from the DHCP Server settings, the browser must be refreshed to show the results. Remember that some changes won't actually take effect until the unit reboots.

For default values or range of valid values, please consult the parameter tables listed in the "Command Line Interface Reference Manual".
